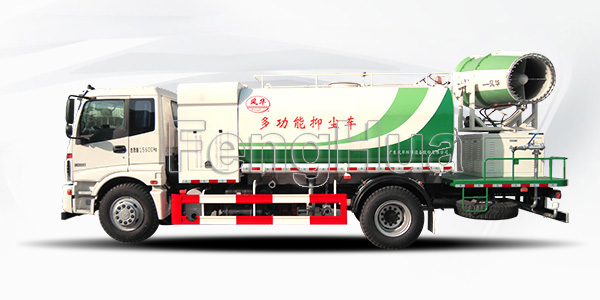

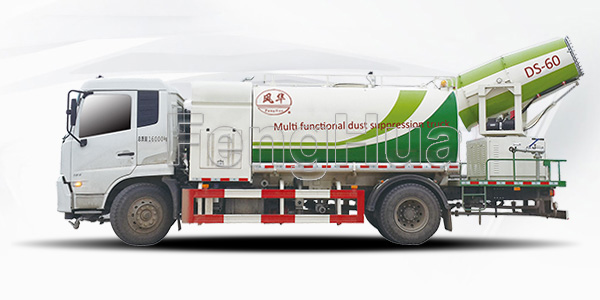

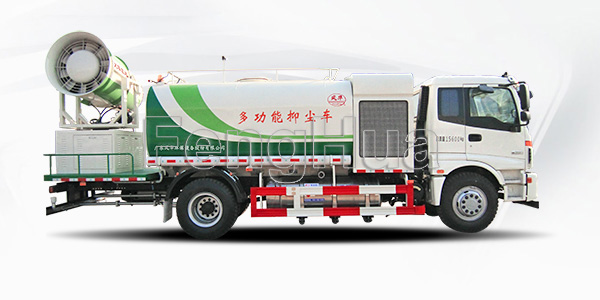

1. Adopt vehicular cluster engine to supply power and via automatic voltage regulator adjust the output voltage of electric generator and dispense with manual operate. The truck has emergency stop button and makes the operation safe and reliable.
2. Adopt environmental protection fog cannon makes the structure compact, long throw distant, fine droplets, wide coverage and all the operations can be done by hand or wireless remote control. All the operations can be viewed in the cab monitor.
3. The truck has front spraying, rear spraying and front washing functions. It's not only can use as watering but also can humidify, dust falling and road-cleaning.
4. The truck is equipped with left-middle and right-rear columnar sprinkler, the nozzles can adjust flexible of left and right, up and down.
5. The rear high-pressure water gun controls flexible. It not only can use to spray washing various high object, can clean out some uneasy blind corner but also used to fire fighting and greening watering. The gun can adjust to columnar and vaporous sprinkler.
6. Water tank is equipped with low water level sensor alarm system, alarm automatically when water level is low.
1. City demolition |
2. City PM 2.5 /10 dust control |
3. Disinfection epidemic prevention |
4. Odor control at waste disposal & landfill sites |
5. Humidifying, cooling, and dust control on construction site |
6. Open pit mining |
7. Steel plant |
8. Port facility |
9. Bulk materials warehouse |
10. Power plant coal storage |
11. Conveyor belt |
12. Quarry& crusher |
Chassis brand |
Dongfeng Tianjin |
Engine power |
≥136 |
Water tank( m³) |
≤12 |
Water tank with phosphating & anti-corrosive treatment |
|
Fog cannon performance |
|
Pressure (MPa) |
1.5-2.5 |
Flow rate (t/h) |
4-8 |
Max throw (m) |
DS-60(60m), DS-80(80m) or DS-100( 100m) (optional) |
Droplet size (μm) |
20-150 |
Pitching angle (°) |
-10-40 |
Rotation angle (°) |
180° |
Spare power output |
380v/220v |
