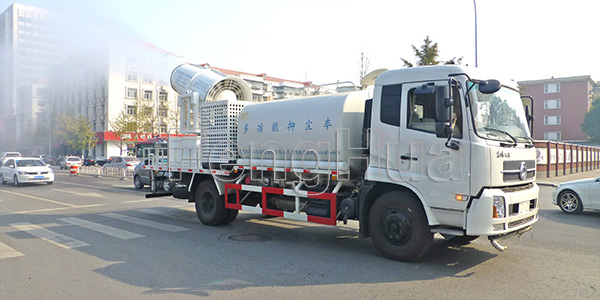

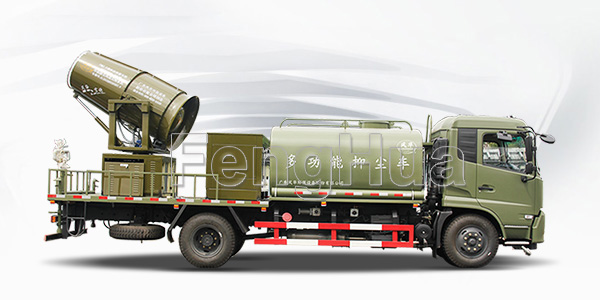

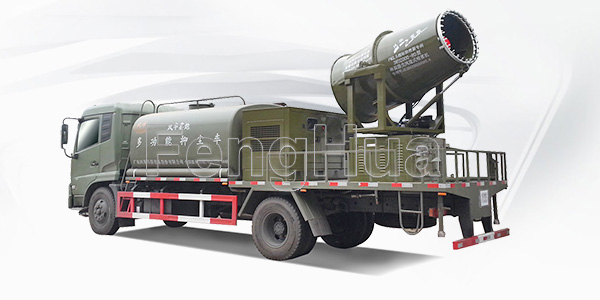

DS-80 Multi Functional Dust Suppression Truck (Dongfeng)
Home » Products » Multi Functional Dust Suppression Truck » DS-80 Multi Functional Dust Suppression Truck
Features of DS-80 Multi Functional Dust Suppression Truck (Dongfeng)

1. Adopt vehicular cluster engine to supply power and via automatic voltage regulator adjust the output voltage of electric generator and dispense with manual operate. The truck has emergency stop button and makes the operation safe and reliable.

2. Adopt environmental protection fog cannon makes the structure compact, long throw distant, fine droplets, wide coverage and all the operations can be done by hand or wireless remote control. All the operations can be viewed in the cab monitor.

3. The truck has front spraying, rear spraying and front washing functions. It's not only can use as watering but also can humidify, dust falling and road-cleaning.

4. The truck is equipped with left-middle and right-rear columnar sprinkler, the nozzles can adjust flexible of left and right, up and down.

5. The rear high-pressure water gun controls flexible. It not only can use to spray washing various high object, can clean out some uneasy blind corner but also used to fire fighting and greening watering. The gun can adjust to columnar and vaporous sprinkler.

6. Water tank is equipped with low water level sensor alarm system, alarm automatically when water level is low.

Application of DS-80 Multi Functional Dust Suppression Truck (Dongfeng)

1. City demolition

2. City PM 2.5 /10 dust control

3. Disinfection epidemic prevention

4. Odor control at waste disposal & landfill sites

5. Humidifying, cooling, and dust control on construction site

6. Open pit mining

7. Steel plant

8. Port facility

9. Bulk materials warehouse

10. Power plant coal storage

11. Conveyor belt

12. Quarry& crusher

13. Haul roads

Truck Parameter

Brand

DongFeng brand

Chassis model

DFL1160BX5

Cab seat

3

Tyre number

6

Gross mass(Kg)

16000

Tyre size

10.00-20, 10.00R20, 9.00-20, 9.00R20, 275/80R22.5 16PR

Rated mass(Kg)

6505

Water tank(m3)

6.8

Service mass(Kg)

9300

Exterior Size (mm)

9000, 9300×2500×3750

Approach/departure angle(°)

20/11,20/12

Front/rear suspension (mm)

1430/2870, 1430/2570

Axles number

2

Wheelbase (mm)

5000, 4700, 4500

Spring piece number

8/10+8, 7/9+6

Max speed(Km/h)

80

Technical Data of DS-80 Multi Functional Dust Suppression Truck (Dongfeng)

Water consumption

108-108 L/min

Work pressure

1.0-3.5MPa

Water droplet size

30-200um

Max throw

80 meters

Pitching angle

-10°~45°

Horizontal angle

180-320°

Coverage area

15,000~17,000 m2

Total power (kw)

37KW

Spraying dust suppression agent

Application

Noise level

≤91db

Control method

Radio remote control

Type of using water

Clean/filtered water
